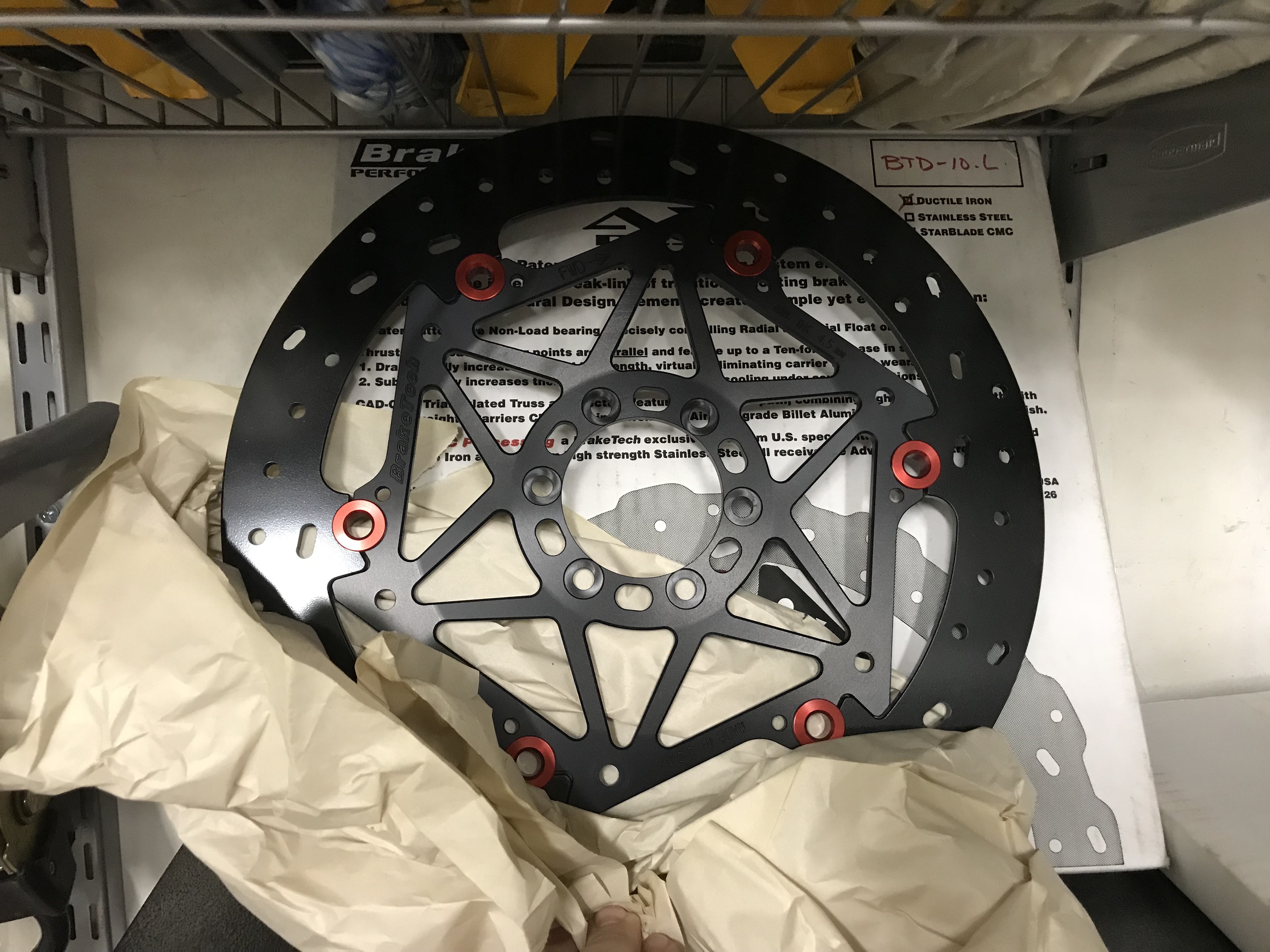

Pickup in the Danforth and Victoria Park area - price is firm since these retail for more than $780USD

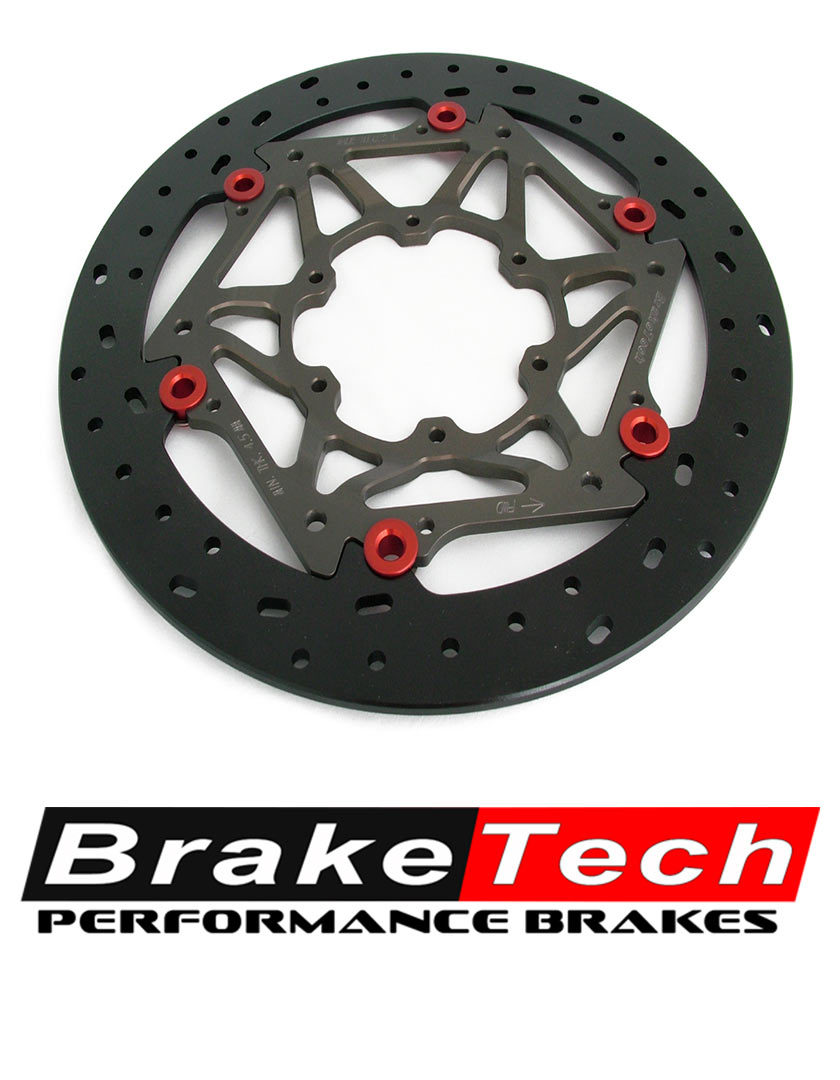

320mm x 5mm AXIS Design w/ Hard Anodized Carriers - (10mm offset)
AXIS IRON ROTORS The exclusive BrakeTech AXIS™ series Ductile Iron full-floaters provides a higher coefficient of friction over stainless, with more feel and feedback at the brake lever. The patented AXIS Design floating system is many times stronger than conventional semi-floating brake rotors. The heart of this leading edge system has the floater buttons controlling radial and axial float only, they are non load-bearing. All of the considerable braking forces are channeled through the trademarked Direct-Link™ architecture, comprising over an 800% increase in surface area load transfer as compared to conventional floating brake rotors…simply far superior by design!
Iron provides a higher coefficient of friction over stainless, with more feel and feedback at the brake lever. But get them wet – they’re going to rust. If you’re a fair weather rider, then it’s a non-event and not an issue. However, if you ride distances where inclement weather is a definite possibility, you’re better off with our AXIS/Cobra stainless steel series in the optimized petal design.
PRODUCT FEATURES:
- Patented AXIS Design – featuring Direct-Link™ load transfer system
- U.S. Patent No. 6,957,726
- 50% greater Tensile Strength and Fatigue Strength: Ductile Iron vs Gray Iron
- CNC machined from billet (continuous cast bar) not porosity prone gravity cast molds
- CRYOGENIC treatment for improved wear resistance
- Greater thermal transfer capability than stainless steel
- Reduced wear from shear forces – longer rotor life
- Carriers CNC machined from premium grade billet aluminum bar – not stamped plate
- Hard-anodized to military grade specifications
- Made in the U.S.A.
YEAR / MAKE / MODEL
2010-2020 Aprilia Dorsoduro 1200
2011-2016 Aprilia Dorsoduro 1200/Abs
2008-2016 Aprilia Dorsoduro 750
2008-2012 Aprilia Mana 850
2008-2016 Aprilia NA Mana 850
1999-2014 Aprilia RSV Mille
1999-2008 Aprilia RSV1000 Mille
2009-2016 Aprilia RSV4
2009-2016 Aprilia RSV4 Factory
2009-2016 Aprilia RSV4 Factory APRC
2009-2016 Aprilia RSV4 (Std Spec) Series
2006-2009 Aprilia Shiver 750
2000-2006 Aprilia SL1000 Falco
2007-2016 Aprilia SL750 Shiver / Dorsoduro 750
2003-2016 Aprilia Tuono / Race (Std Spec)
2003-2014 Aprilia Tuono 1000
2015-2016 Aprilia Tuono V4 1100 (Std Spec)
2015-2016 Aprilia Tuono V4 1100 Factory
2015-2020 Aprilia Tuono V4 1100 RR
2004-2016 Benelli TNT range
2002-2016 Benelli Tornado
1996-2016 Bimota 10mm offset
1996-2016 Bimota 6-Hole Mnt
2009-2016 Bimota DB5R & DB6R
2009-2016 Bimota DB7 & DB8
1996-2016 Bimota Most Models
1994-2003 Ducati 748
1988-1993 Ducati 851
1992-1994 Ducati 888
1994-1999 Ducati 916
1999-2002 Ducati 996
2002-2004 Ducati 998
1994-2004 Ducati 600/620
2000-2002 Ducati 748S
2001-2002 Ducati 996S
2002-2004 Ducati 998S
2006-2010 Ducati GT1000 Touring
2002-2002 Ducati MH900E
2002-2005 Ducati Monster 1000
1993-2002 Ducati Monster 400
1993-1998 Ducati Monster 600
2000-2004 Ducati Monster 620
2008-2014 Ducati Monster 696
1995-2002 Ducati Monster 750
2009-2014 Ducati Monster 795
2002-2003 Ducati Monster 800
2003-2004 Ducati Monster 800
1992-2001 Ducati Monster 900
2006-2008 Ducati Monster S2R 1000
2005-2007 Ducati Monster S2R 800
2004-2006 Ducati Monster S4R
2006-2006 Ducati Paul Smart 1000LE
2006-2008 Ducati Sport 1000
2007-2009 Ducati Sport 1000S
1997-2003 Ducati ST2
2004-2007 Ducati ST3
1999-2003 Ducati ST4
2002-2005 Ducati ST4S
2008-2016 KTM 1190 RC8
2010-2016 KTM 1190 RC8 R
2007-2012 KTM 690 Duke
2004-2015 KTM 990 Super Duke
2004-2015 KTM 990 Super Duke R
2006-2016 Moto Morini 9 1/2
2005-2016 Moto Morini Corsaro 1200
2009-2016 Moto-Guzzi 1200 Sport 4V
1992-2008 Moto-Guzzi All 320mm Models
2009-2016 Moto-Guzzi Audace 1400
2007-2013 Moto-Guzzi Bellagio 940
2009-2016 Moto-Guzzi California 1400
2009-2016 Moto-Guzzi El Dorado 1400
2005-2016 Moto-Guzzi Griso 1100/1200
2004 Moto-Guzzi MGS/01 Corsa
2012-2013 Moto-Guzzi Nevada 750
2009-2016 Moto-Guzzi Norge 1200 Gt 8V
2009-2016 Moto-Guzzi Stelvio 1200 Ntx
2011-2016 Moto-Guzzi V7 (all)
2006 Moto-Morini 9.5 (998)
2005 Moto-Morini Corsaro
2008-2009 NCR Factory Millona S (Brembo 4-pad)
2008-2009 Norton 961
2008-2009 Norton all models
2006-2020 Norton Commando 961
2006-2020 Norton Commando 961 Cafe Racer
2006-2020 Norton Commando 961 SE
2006-2020 Norton Commando 961 SF
2006-2020 Norton Commando 961 Sport
1987-1995 Yamaha FZR1000
1996-1997 Yamaha SZR660
1987-1992 Yamaha TZR250
1994-1998 Yamaha YZF750
1994-1998 Yamaha YZF750R
